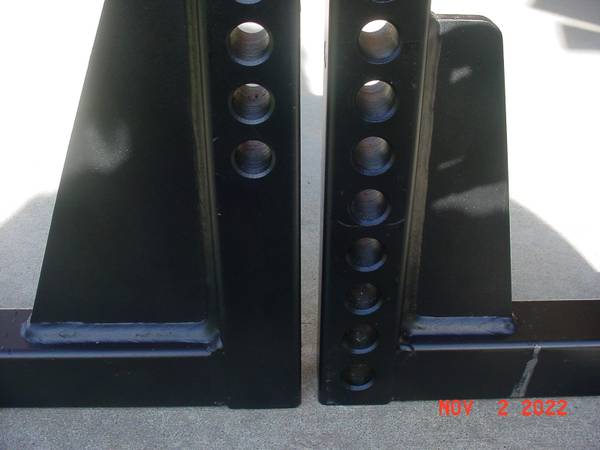

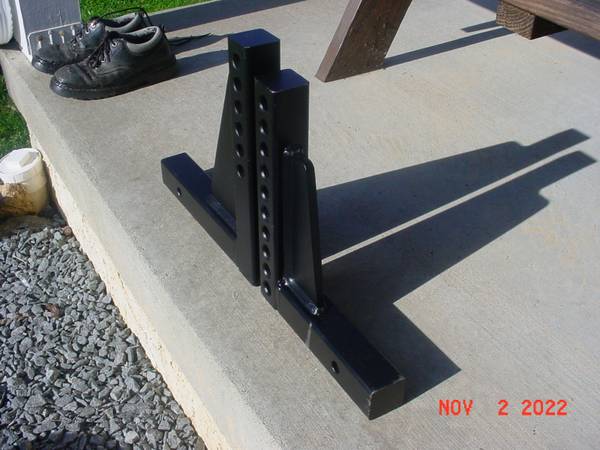

New C17123 Curt Weight Distribution Shank 13-1/4" - $50 (Coatesville)
817 S. CALN ROAD near West Chester Road
QR Code Link to This Post
Measures: 13-1/4" H x 11" L
Fits 2 Inch Hitch
Round - 8-1/2 In Drop
Trunnion - 8-1/4 In Drop
1500 lbs TW
Round - 12-3/4 In Rise
Trunnion - 11-1/2 In Rise
15000 lbs GTW
This shank offers both rise and drop positions. It measures 7" from the hitch pin hole to the bolt holes. 10 Bolt holes let you adjust the height of your weight distribution system. Powder coated steel resists corrosion.
Features:
Shank slides into your hitch receiver and provides the attachment point for your weight distribution systems head assembly
Designed for use with weight distribution systems
10 Adjustment points for attaching the head assembly
Lets you level your trailer with your tow vehicle
Drop or rise positions available to fit your application
Welded steel construction is durable
Black powder coat finish resists rust and corrosion
Specs:
Application: 2" x 2" trailer hitch receivers
Weight capacity: 15,000 lbs
Tongue weight: 1,500 lbs
Overall shank height: 13-1/4"
Holes are spaced 1-1/4" apart on center
Overall distance from front of shank to back of receiver: 11"
Maximum drop:
Round bar system: 8-1/2"
Trunion bar system: 8-1/4"
Maximum rise:
Round bar system: 12-3/4"
Trunion bar system: 11-1/2"
Distance from center of shank pin hole to back of adjustment shank: 6"
Distance from center of adjustment holes to center of shank pin hole: 7"
Distance from front of shank to center of shank pin hole: 8"
Primarily used on 2500/3500 and lifted trucks.
