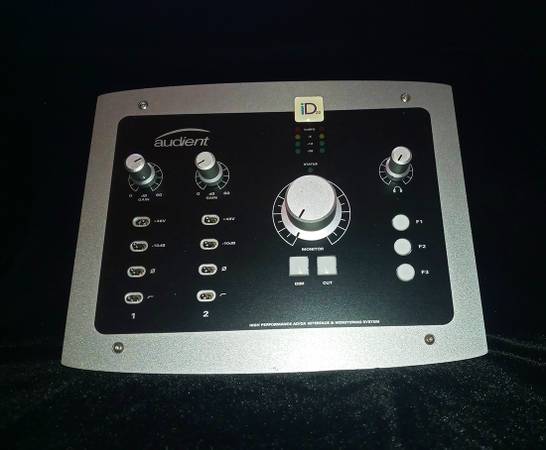

AUDIENT iD22 AUDIO INTERFACE - $375 (Reading)
condition:
like new
make / manufacturer:
AUDIENT
model name / number:
iD22
size / dimensions:
9"x 7"x 3.5"
QR Code Link to This Post
Well taken care of unit that never left my home studio
Mint condition w/ all manuals, accessories and box
OVERVIEW:
10in | 14out audio interface
Every iD interface features the Audient Console Mic Preamp,
the same discrete circuit design found in our renowned recording
console the ASP8024-HE. Designed to deliver ultra- low noise and
low distortion with a touch of classic analogue warmth,
iD22’s two Audient Console mic pre’s will give you the
professional sound you deserve.
The Audient mic pre is a high grade hybrid discrete and
op amp design that delivers a clean, accurate and detailed
translation of your source.
With a noise floor 30,000 times quieter than the signal
level your recordings will be captured with stunning clarity.
Offering an incredible 120dB of dynamic range, iD22’s class
leading converters make sure you hear every nuance, every
detail of your audio by providing stunning sonic clarity
directly from your desktop.
Designed to replicate the input stage of a classic
valve amplifier, iD22’s harmonically rich JFET Instrument
Input is the perfect sonic foundation for your guitar or bass.
More than just a two in, four out interface, iD22’s digital
inputs + outputs give you the option to add up to eight extra
mic pre inputs letting you expand your rig and take on larger sessions.
Integrate your favourite outboard FX prior to conversion and start
creating signal chains that rival the very best. The insert returns
also gives you direct access to the A/D converters providing the
cleanest signal path possible, making it great for print-backs
or integrating outboard line level sources.
The iD mixer tightly integrates hardware and software,
letting you effortlessly create and customise low latency
headphone mixes, utilise the flexible monitor control or
simply keep an eye on your levels – all from one easy to use app.
iD22’s dedicated talkback technology enables you to use any
audio source connected to your computer such as a built in
or USB microphone as your talkback mic, freeing up valuable
mic pres for recording.
Speed up your workflow with iD22’s three programmable function buttons.
Assign any of the advanced monitoring features, including Speaker Select,
Mono Sum, Talkback or Cue Mix monitoring, to any of the F-buttons and
experience customisable hardware control at your fingertips.
Plug in and listen to your mixes through two sets of speakers
with iD22’s 4 line outputs or work via headphones using the
independent headphone amp.
With its all-metal construction, hand finished aluminium knobs
and high grade component selection, iD22 delivers professional
quality audio in a beautifully engineered and all-metal package.
FEATURES:
• 2 x Audient Console Mic Preamps
• Class Leading Converters
• High Performance Burr Brown AD/DA Converters
• Fully Balanced Inserts
• ADAT Input & Output for Expandability
• 1 x JFET Instrument Input
• Low Latency DSP Mixer
• Main and Alternative Speaker outputs
• Independent Headphone Output
• User Defined Function Keys
• Full Monitor Control Functionality
• USB2.0
• All Metal Design
• 24bit/96khz
• Free Software + Plugins
https://www.soundonsound.com/reviews/audient-id22
Microphone Preamplifier
MIC GAIN: 10 to +60 dB (-10dB Pad)
LINE GAIN: -20 to +40 dB (-10dB Pad)
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +22dBu (+32dBu with Pad)
INPUT IMPEDANCE (Mic): 3kΩ balanced
INPUT IMPEDANCE (Line): 10kΩ balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 100kHz
PAD: -10dB
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.0015% (-96dBu)
SNR: 96dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I (Channel 2)
D.I GAIN:-16 to +54 dB (-10dB Pad)
MAXIMUM INPUT LEVEL:+16dBu (typical), +22dBu
INPUT IMPEDANCE:1MegΩ Unbalanced
FREQUENCY RESPONSE:+/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz):<0.03% (-70dBu)
SNR:93dB
1/4” JACK:TIP (Hot) & SLEEVE (Shield)
Insert Sends (Mic Pre Out)
MAXIMUM OUTPUT LEVEL:+22dBu
OUTPUT IMPEDANCE:<100Ω Balanced
1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
ADC Line Inputs (Insert Returns)
MAXIMUM INPUT LEVEL:+18dBu
DIGITAL REFERENCE LEVEL:0dBFS = +18dBu
INPUT IMPEDANCE:>10kΩ Balanced
FREQUENCY RESPONSE:+/-0.5dB 10Hz to Fs/2
CROSSTALK:-100dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):<0.002% (-94dB)
THD+N @ -6dBFS (1kHz):<0.0015% (-97dB)
DYNAMIC RANGE:117dB un-weighted, 120dB A-weighted
1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
DAC Outputs (1-4)
MAXIMUM OUTPUT LEVEL:+18dBu
DIGITAL REFERENCE LEVEL:0dBFS = +18dBu
OUTPUT IMPEDANCE:<100Ω Balanced
FREQUENCY RESPONSE:+/-0.5dB 5Hz to Fs/2
CROSSTALK:-110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):<0.0008% (-101dB)
DYNAMIC RANGE:110dB un-weighted, 114dB A-weighted
1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output (5&6)
MAXIMUM OUTPUT LEVEL:+18dBu
DIGITAL REFERENCE LEVEL:0dBFS = +18dBu
OUTPUT IMPEDANCE:<100Ω Balanced
FREQUENCY RESPONSE:+/-0.5dB 5Hz to Fs/2
CROSSTALK:-110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):<0.0008% (-101dB)
DYNAMIC RANGE:110dB un-weighted, 114dB A-weighted
1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital I/O
ADAT 8 CHANNELS::44.1 – 48kHz
ADAT 4 CHANNELS:88.2 – 96kHZ
STEREO S/PDIF: 44.1 – 96kHz
USB 2.0 High Speed
NO. OF INPUT CHANNELS:10 (2 Analogue, 8 Digital)
NO. OF OUTPUT CHANNELS:14 (6 Analogue, 8 Digital)
Power Supply
12VDC Centre Positive DC Adapter – >1.5Amps
Internally conditioned to provide +48VDC, +/-15VDC & low voltage rails
for digital processing core & converters. iD22 cannot be bus powered
for quality reasons.
